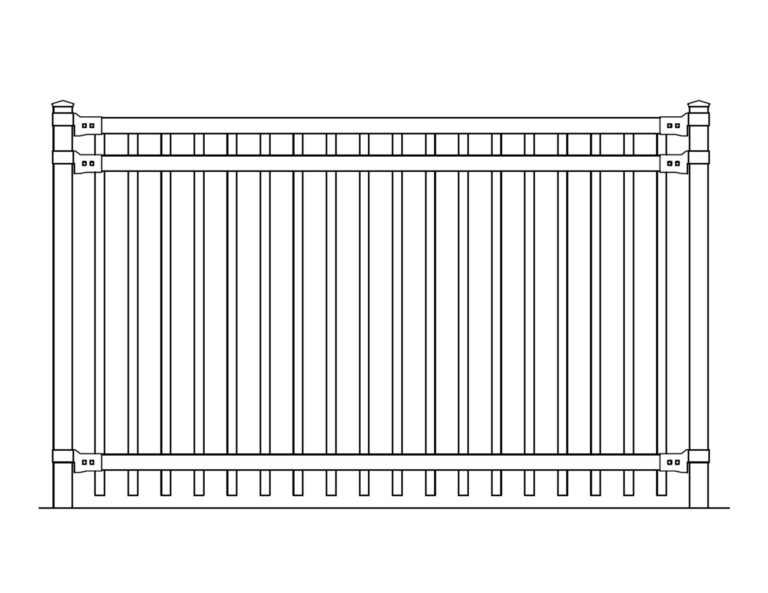

Longhorn II 6703

Industrial 3 Rail with Flat Top Design

From our Longhorn Industrial II Series, this best-selling three rail design has a flat top design. The clean profile has been a best-seller for a reason!

SKU: 6703 Categories: , Tags: , , , , ,
  • Panels are available in two standard widths.
    • 96″ wide panels can be ordered in 4 standard heights (3ft, 4ft, 5ft and 6ft high).
    • 69 1/2″ wide panels can be ordered in 5 standard heights (7ft, 8ft, 9ft, 10ft and 12ft high).
  • Matching single, double, sliding cantilever and bi-fold gates can be added to finish your job.
  • Standard Colour – High Gloss Black (other colours are available by request).

Height

96″ Panels
3ft (36″)
4ft (48″)
5ft (60″)
6ft (72″)

69 1/2″ Panels
7ft (84″)
8ft (96″)
9ft (108″)
10ft (120″)
12ft (144″)

Weight

96″x36″ – 97 lbs
96″x48″ – 114 lbs
96″x60″ – 129 lbs
96″x72″ – 146 lbs
69 1/2″x84″ – 127 lbs
69 1/2″x96″ – 140 lbs
69 1/2″x108″ – 153 lbs
69 1/2″x120″ – 165 lbs
69 1/2″x144″ – 190 lbs

Specs

Pickets 3/4″ x 1 1/2″
Rails 1 1/2″ x 2 1/2″
Posts (3″x3″) setting centre to centre for:

  • 3′ to 6′ height – 102 1/2″
  • 7′ height and up – 76″

POSTS SOLD SEPARATELY

Options

  • Posts (3″x3″) sold separately
  • Pyramid Post Caps
  • Ball Post Caps
  • Post Caps sold separately
  • Fittings sold separately

Files

  • PDF
  • DWG-Call for drawing file
