- Panels are available in two standard widths.
- 96″ wide panels can be ordered in 4 standard heights (3ft, 4ft, 5ft and 6ft high).
- 69 1/2″ wide panels can be ordered in 5 standard heights (7ft, 8ft, 9ft, 10ft and 12ft high).
- Matching single, double, sliding cantilever and bi-fold gates can be added to finish your job.
- Standard Colour – High Gloss Black (other colours are available by request).

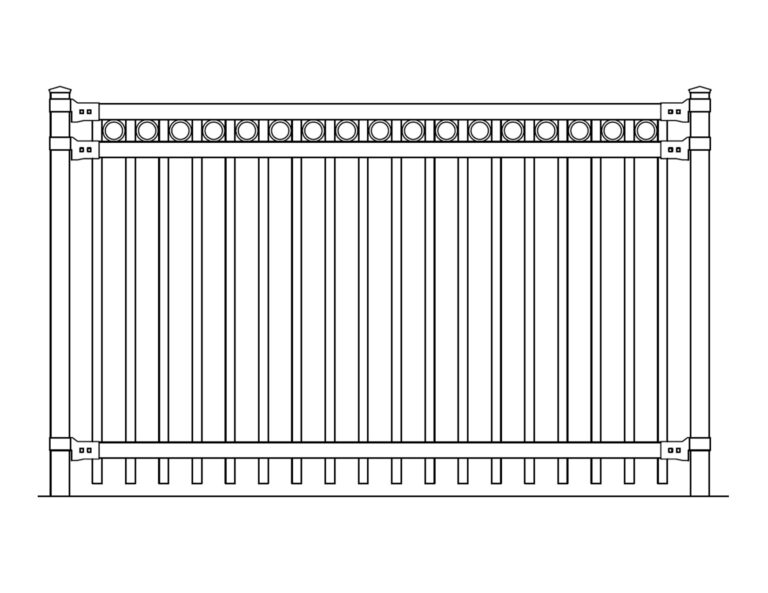

Longhorn II 6710
Industrial 3 Rail with Flat Top and Rings
From our Longhorn Industrial II Series, this clean three rail design has a flat top finish and 3 3/4″ rings are placed between every picket between the top 2 rails. Classic and clean, yet substantial.
Height
96″ Panels
3ft (36″)
4ft (48″)
5ft (60″)
6ft (72″)
69 1/2″ Panels
7ft (84″)
8ft (96″)
9ft (108″)
10ft (120″)
12ft (144″)
Weight
96″x36″ – 115 lbs
96″x48″ – 121 lbs
96″x60″ – 137 lbs
96″x72″ – 154 lbs
69 1/2″x84″ – 133 lbs
69 1/2″x96″ – 146 lbs
69 1/2″x108″ – 159 lbs
69 1/2″x120″ – 172 lbs
69 1/2″x144″ – 198 lbs
Specs
Pickets 3/4″ x 1 1/2″
Rails 1 1/2″ x 2 1/2″
Posts (3″x3″) setting centre to centre for:
- 3′ to 6′ height – 102 1/2″
- 7′ height and up – 76″
POSTS SOLD SEPARATELY
Files
- DWG-Call for drawing file
