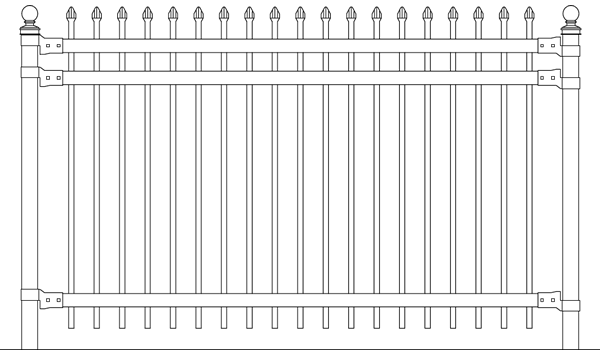

Longhorn III 6521

Commercial 3 Rail with Pickets

From our Longhorn Commercial III Series, this top seller is a 3 rail design and has pickets extending above the top rail. Pickets can be pinched (as shown) for a classic arrow top look, or flat top with a plastic insert.

SKU: 6521 Categories: , Tags: , , , , ,
  • Panels are available in two standard widths.
    • 93″ wide panels can be ordered in 4 standard heights (3ft, 4ft, 5ft and 6ft high).
    • 68 1/2″ wide panels can be ordered in 5 standard heights (7ft, 8ft, 9ft, 10ft and 12ft high).
  • Matching single, double, sliding cantilever and bi-fold gates can be added to finish your job.
  • Standard Colour – High Gloss Black (other colours are available by request).

Height

93″ Panels
3ft (36″)
4ft (48″)
5ft (60″)
6ft (72″)

68 1/2″ Panels
7ft (84″)
8ft (96″)
9ft (108″)
10ft (120″)
12ft (144″)

Weight

93″x36″ – 97 lbs
93″x48″ – 114 lbs
93″x60″ – 129 lbs
93″x72″ – 146 lbs
68 1/2″x84″ – 127 lbs
68 1/2″x96″ – 140 lbs
68 1/2″x108″ – 153 lbs
68 1/2″x120″ – 165 lbs
68 1/2″x144″ – 190 lbs

Specs

Pickets 1″ x 1″
Rails 1 1/2″ x 2 1/2″
Posts (3″x3″) setting centre to centre for:

  • 3′ to 6′ height – 98 1/4″
  • 7′ height and up – 74 3/4″

POSTS SOLD SEPARATELY

Options

  • Pinched or Arrow Top Pickets
  • Flat Top (with black plastic inserts) Pickets
  • Posts (3″x3″) sold separately
  • Pyramid Post Caps
  • Ball Post Caps
  • Post Caps sold separately
  • Fittings sold separately
