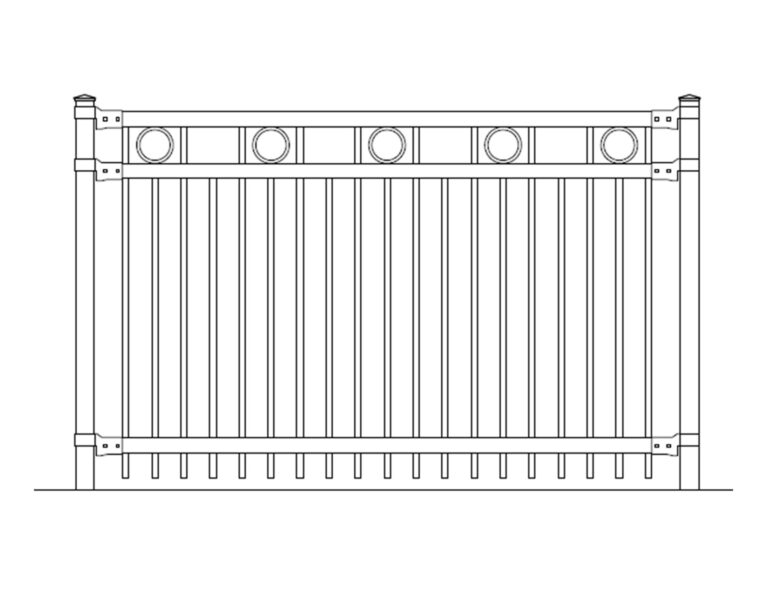

Longhorn III 6538

Commercial 3 Rail with Flat Top Design and Rings

From our Longhorn Commercial III Series, this traditional style adds alternating 5″ rings to style 6534. A bit more detail but still an uncluttered, classic look.

SKU: 6538 Categories: , Tags: , , , , , ,
  • Panels are available in two standard widths.
    • 89″ wide panels can be ordered in 4 standard heights (3ft, 4ft, 5ft and 6ft high).
    • 63 1/2″ wide panels can be ordered in 5 standard heights (7ft, 8ft, 9ft, 10ft and 12ft high).
  • Matching single, double, sliding cantilever and bi-fold gates can be added to finish your job.
  • Standard Colour – High Gloss Black (other colours are available by request).

Height

89″ Panels
3ft (36″)
4ft (48″)
5ft (60″)
6ft (72″)

63 1/2″ Panels
7ft (84″)
8ft (96″)
9ft (108″)
10ft (120″)
12ft (144″)

Weight

89″x36″ – 111 lbs
89″x48″ – 117 lbs
89″x60″ – 133 lbs
89″x72″ – 151 lbs
63 1/2″x84″ – 130 lbs
63 1/2″x96″ – 143 lbs
63 1/2″x108″ – 156 lbs
63 1/2″x120″ – 169 lbs
63 1/2″x144″ – 195 lbs

Specs

Pickets 1″ x 1″
Rails 1 1/2″ x 2 1/2″
Posts (3″x3″) setting centre to centre for:

  • 3′ to 6′ height – 94″
  • 7′ height and up – 68 3/4″

POSTS SOLD SEPARATELY

Options

  • 5″ Rings
  • Posts (3″x3″) sold separately
  • Pyramid Post Caps
  • Ball Post Caps
  • Post Caps sold separately
  • Fittings sold separately

Files

  • PDF
  • DWG120-Call for drawing file
  • DWG72-Call for drawing file
